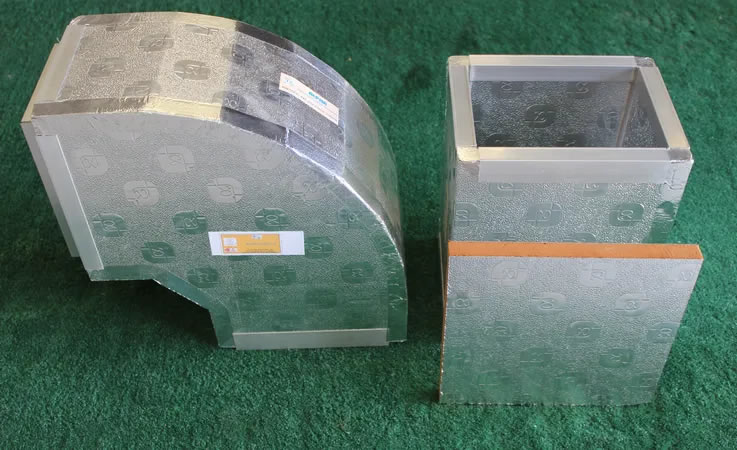

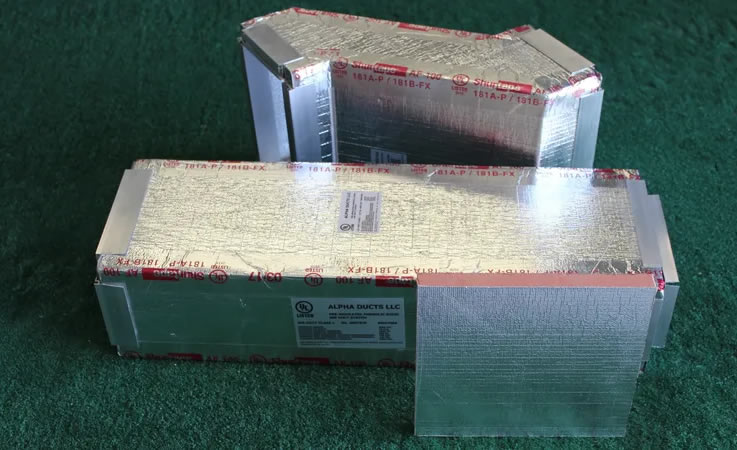

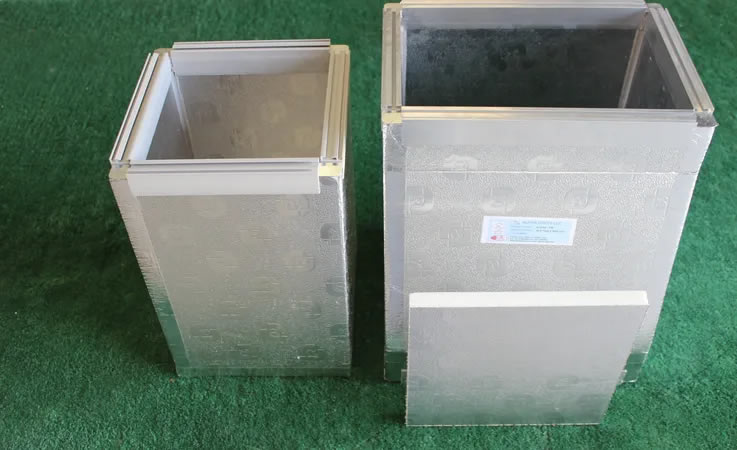

PRE-INSULATED DUCT PANELS

Insulation Panels

PIR System

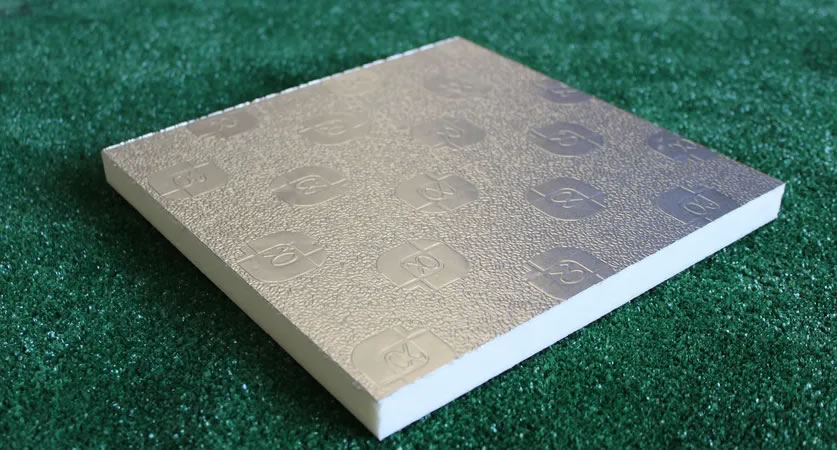

ALPHA-PIR Panel

ALPHA-PIR panel consists of a formaldehyde-free, CFC-free, fiber-free, high-performance rigid thermoset Polyisocyanurate foam core faced on both sides with an extremely durable, protective, low vapor permeability 80 or 200 micron aluminium foil.

Availability: 20 mm & 30 mm thickness (Standard size: 4000 mm x 1200 mm)
Color: White foam core with silver facings
Thermal Conductivity: 0.022 W/m.K
Density: Standard 42–48 kg/m³ (50–55 kg/m³ upon request)
Fire Properties: Class 0 (BS 476 pts 6&7), Class A (ASTM E 84, UL 723, NFPA 255/101)

Phenolic System

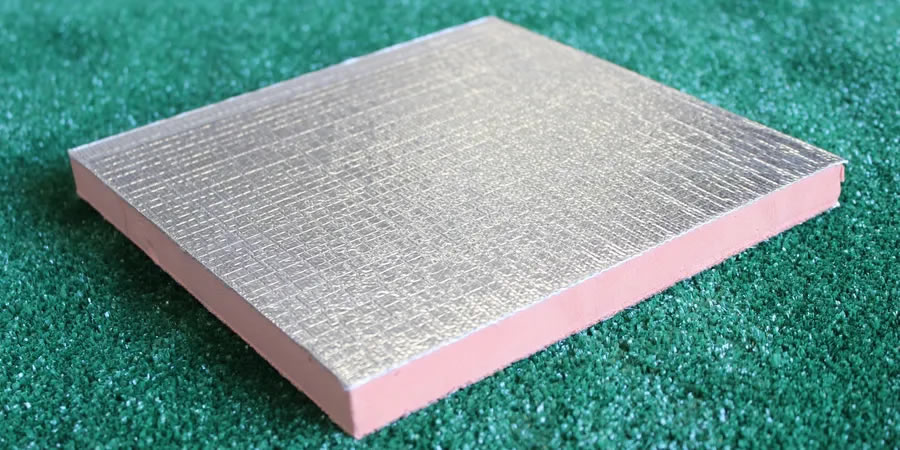

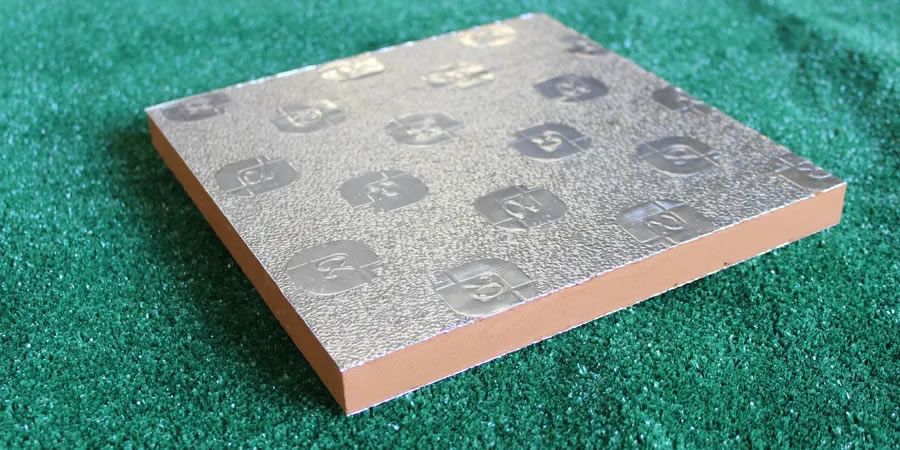

ALPHA-PF Panel

ALPHA-PF panel consists of a CFC-free, fiber-free, high-performance rigid thermoset Phenolic foam core faced on both sides with an extremely durable, protective, low vapor permeability 80 or 200 micron aluminium foil.

Availability: 20 mm & 30 mm thickness (Standard size: 4000 mm x 1200 mm)
Color: Orange foam core with silver facings
Thermal Conductivity: 0.024 W/m.K
Density: Standard 55–60 kg/m³
Fire Properties: Class 0 (BS 476 pts 6&7), Class 1 (ASTM E 84, UL 723)

Reinforced Phenolic

ALPHA-PF-PLUS Panel

ALPHA-PF-PLUS panel consists of a CFC-free, fiber-free, high-performance rigid thermoset Phenolic foam core faced on both sides with an 18 micron aluminium foil reinforced with a glass scrim for maximum structural strength.

Availability: 20 mm & 30 mm thickness (Standard size: 4000 mm x 1200 mm)
Color: Orange foam core with silver facings
Thermal Conductivity: 0.024 W/m.K
Density: Standard 55–60 kg/m³ (50–55 kg/m³ upon request)
Fire Properties: Class 1 (UL 181), Class 0 (BS 476 pts 6&7)

THERMAL & ACOUSTIC CONTROLS

Insulation Products

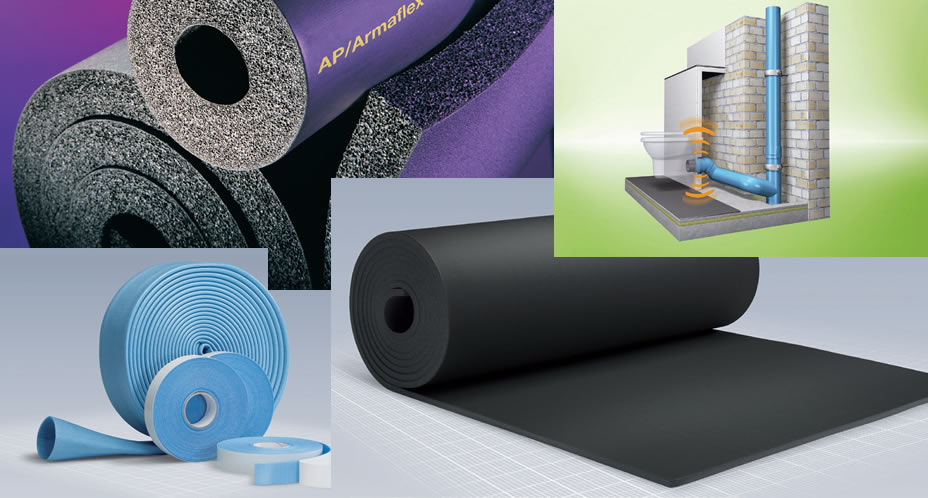

Armaflex AC Class 0

Flexible insulation designed to prevent condensation and minimize energy losses in HVAC and refrigeration systems.

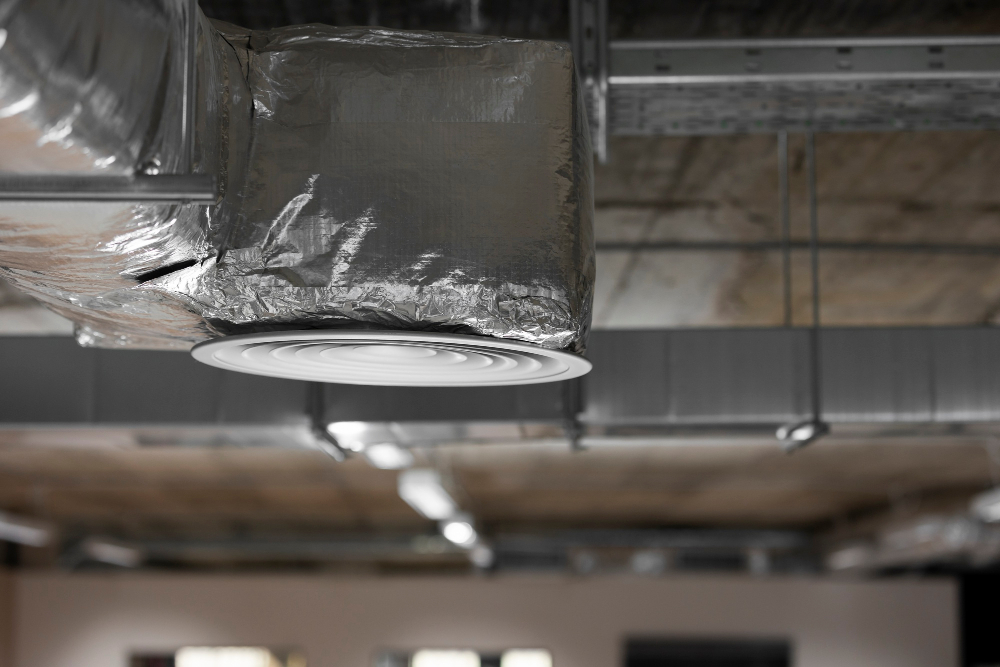

AP / Armaflex

Heavy-duty pipe and duct insulation engineered for long-term thermal efficiency and moisture defense.

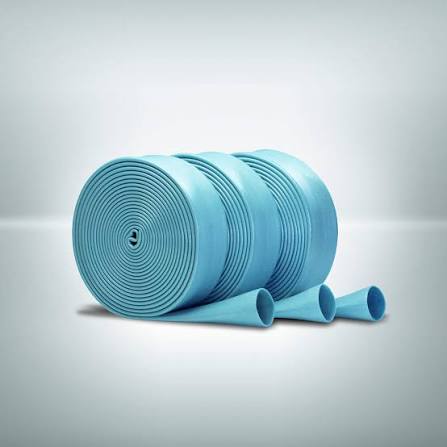

Tubolit AR Fonoblok

Specialized noise-reducing insulation engineered specifically for cast iron waste water pipes.

Tubolit AR Fonowave

Acoustic dampening and noise-reducing insulation tailored for plastic waste water pipe networks.

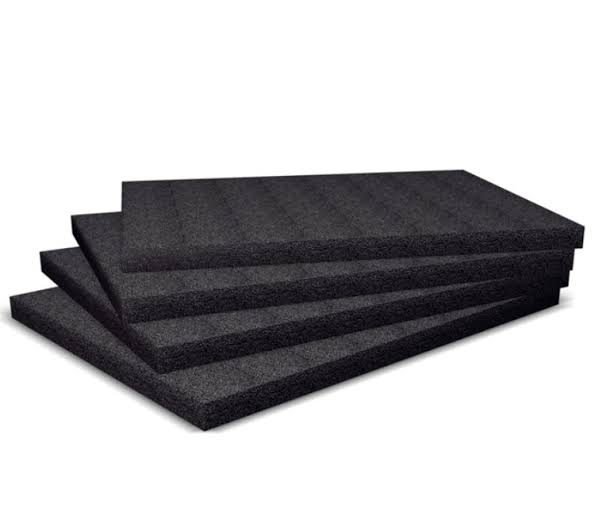

Armacell Ductliner Armasound

High-performance acoustic insulation designed to absorb vibration and create quieter indoor air environments.

HARDWARE & INSTALLATION FITOUTS

Accessories & Ducting Fittings

Item Name	Product Code	Dimensions / Specs	Additional Notes

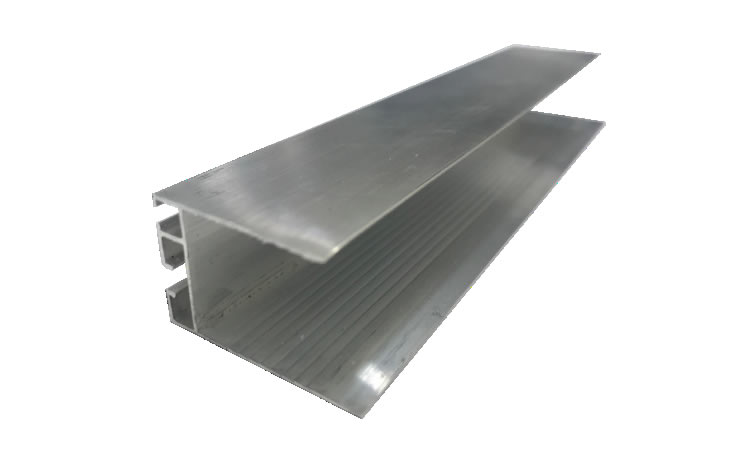

Aluminium Invisible Flange	`AD-F-AIF-20`	Size: 20 mm \| Length: 4 m	HVAC duct joint connection
Aluminium Invisible Flange	`AD-F-AIF-30`	Size: 30 mm \| Length: 4 m	HVAC duct joint connection

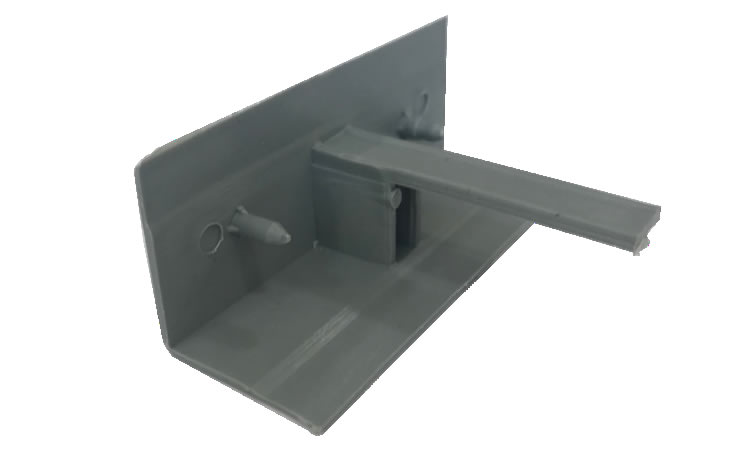

Polymer Covering Angle	`AD-F-PCA-20`	W/H: 25 mm \| Length: 80 mm	Corner protection profile
Polymer Covering Angle	`AD-F-PCA-30`	W/H: 40 mm \| Length: 80 mm	Corner protection profile

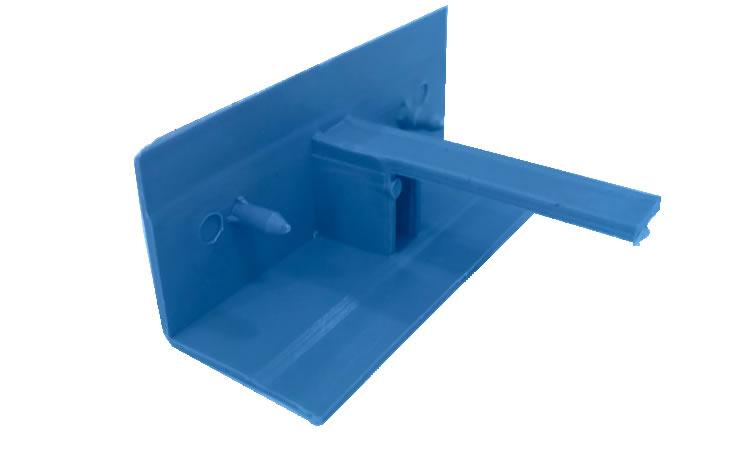

Polymer Covering Angle (Blue)	`AD-F-PCAB-20`	W/H: 30 mm \| Length: 80 mm	For ALPHA-PIR-PLUS duct system
Polymer Covering Angle (Blue)	`AD-F-PCAB-30`	W/H: 40 mm \| Length: 80 mm	For ALPHA-PIR-PLUS duct system

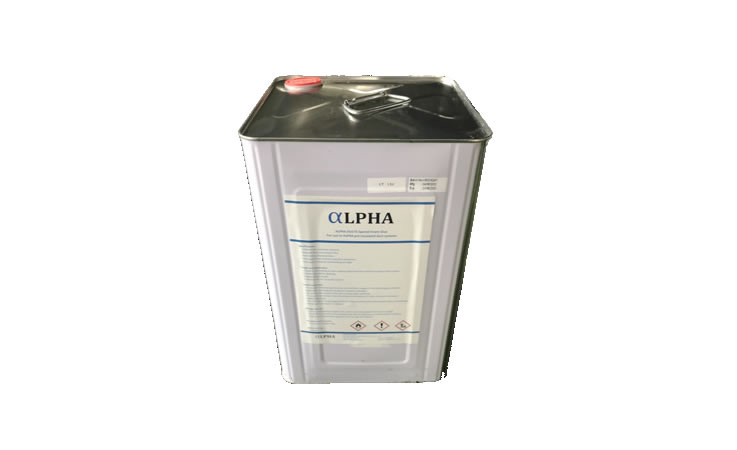

ALPHA DUCTS Special Foam Glue	`AD-F-AG-15`	250 x 350 mm \| Weight: 15 kg	High-strength panel adhesive

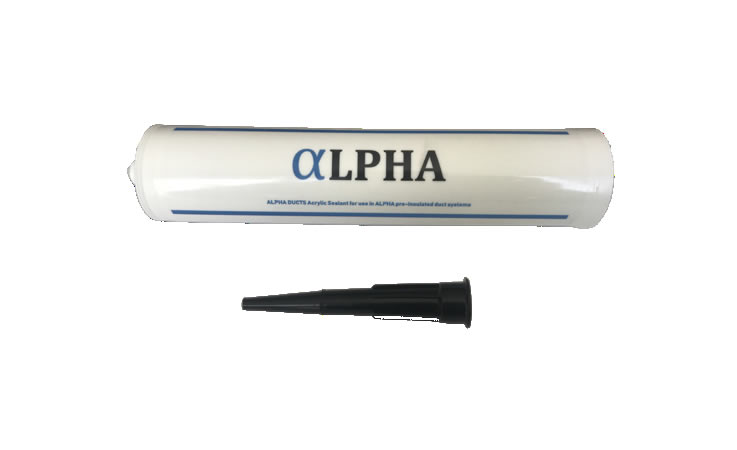

ALPHA DUCTS Acrylic Sealant	`AD-F-ASL`	Length: 215 mm \| Weight: 400 g	Airtight seam sealing

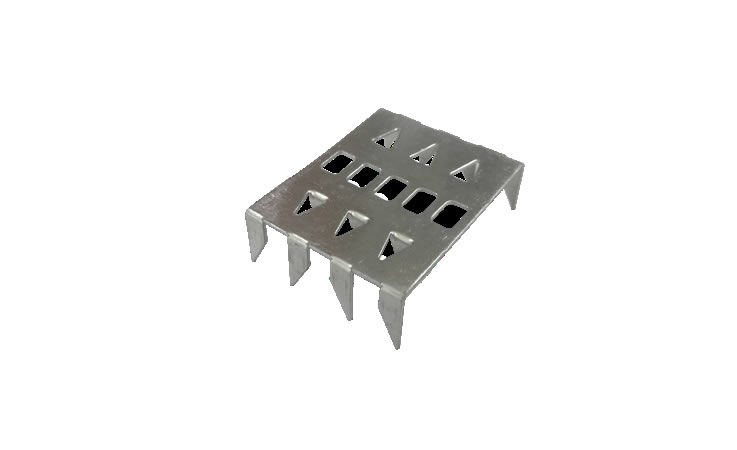

Aluminium Tiger Connector	`AD-F-ATC`	Length: 50 mm \| Weight: 40 g	Structural duct reinforcement

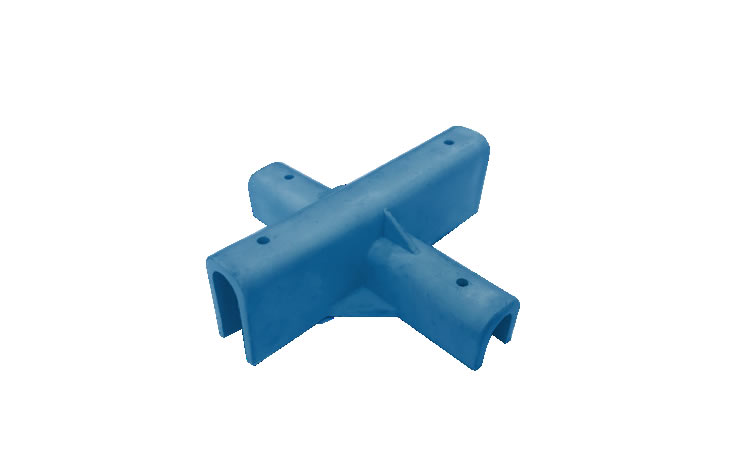

Polymer Cross Fixing Connector (Blue)	`AD-F-PCFCB`	Length: 118 mm \| Width: 118 mm	For ALPHA-PIR-PLUS duct system

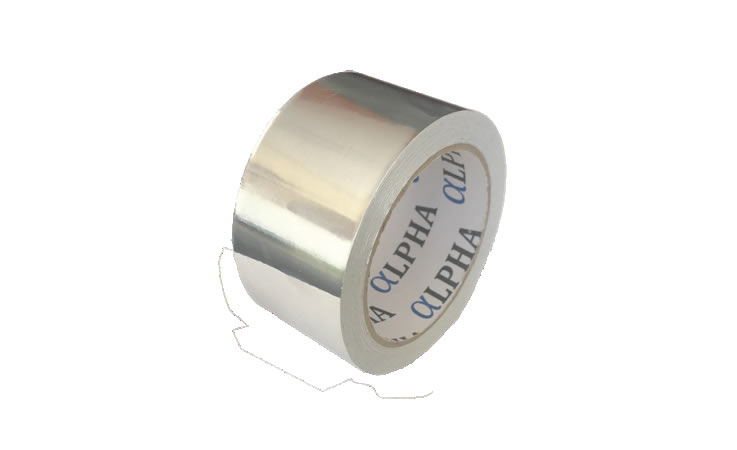

Aluminium Tape	`AD-F-AT-50-25`	Width: 22.86 mm \| Length: 50 m	Vapor barrier joint sealing

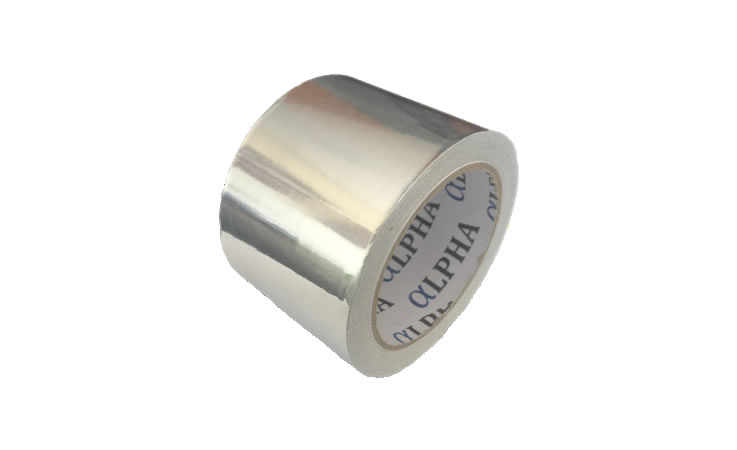

Aluminium Tape	`AD-F-AT-75-25`	Width: 75 mm \| Length: 45.72 m	Vapor barrier joint sealing

QUALITY ASSURANCE

How We Execute Projects

Every service provided by Franz Company Limited follows a rigorous standards protocol designed to reduce site downtime, prevent hazards, and deliver robust infrastructure performance.

Assessment & Engineering Planning

Thorough site visits, structural modeling, and safety risk mapping before deployment.

Certified Execution & Quality Control

Adherence to international standards with continuous HSEQ oversight on every project phase.
